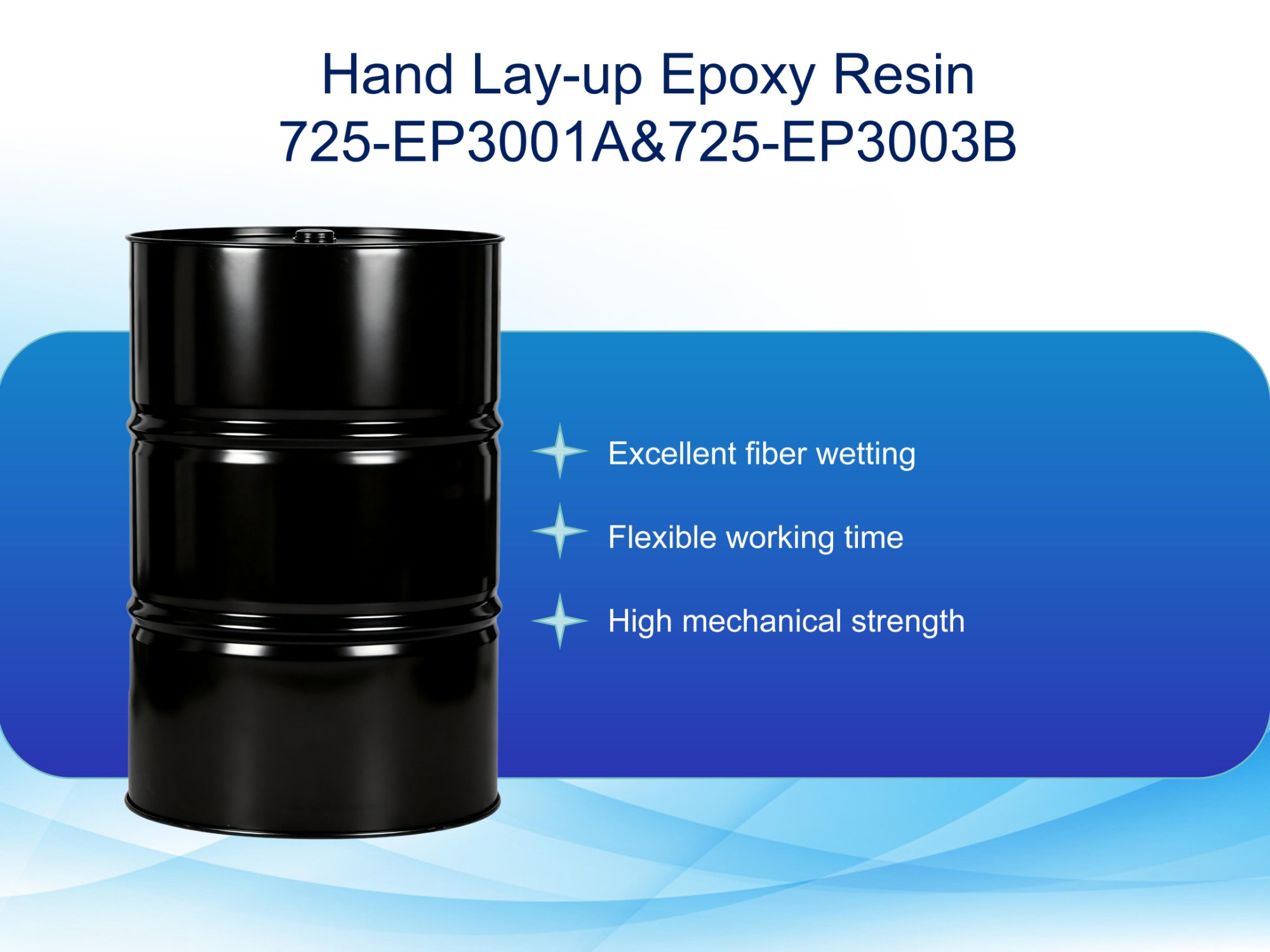

Rapid Curing Wind Turbine Blade Hand Lay-up Epoxy Resin
725-EP3001A&725-EP3003B Rapid Curing Wind Turbine Blade Hand Lay-up Epoxy Resin is a two-component epoxy system designed for efficient manual fabrication of fiber reinforced composites. It offers low viscosity, excellent fiber wettability, rapid curing characteristics, good mechanical properties, and reliable performance for wind turbine blades, composite covers, fairings, and other FRP structures.
Product Description
725-EP3001A & 725-EP3003B is a two-component rapid curing epoxy resin system specially developed for hand lay-up manufacturing of wind turbine blades and fiber reinforced composite components.
The system consists of 725-EP3001A epoxy resin component and 725-EP3003B curing agent, providing excellent processing performance, fast reaction characteristics, and stable mechanical properties after curing.
With its low viscosity, good fiber wettability, short curing response, and excellent mechanical strength, this epoxy resin system is designed for composite manufacturers requiring improved production efficiency and reliable laminate quality.
The resin system meets the performance requirements of the German Classification Society standards for wind turbine blade paste applications and is suitable for structural composite components requiring high strength, durability, and fatigue resistance.
Product Advantages
Rapid Curing Performance for Higher Production Efficiency
725-EP3001A & 725-EP3003B provides a shorter operation window with a pot life of ≥10 minutes at 25℃, making it suitable for applications requiring fast processing and quicker production cycles.
Excellent Fiber Wetting Capability
The resin system provides good compatibility with reinforcement fibers, allowing efficient resin penetration and improving composite laminate quality.
Good Flow Performance
With a mixed viscosity of 800-1500 cP at 25℃, the resin provides balanced flow performance for manual lay-up composite processing.
Reliable Mechanical Properties
After curing, the resin delivers:
- High tensile strength
- Excellent flexural strength
- High modulus
- Low water absorption
- Good dimensional stability
for long-term composite applications.
Designed for Wind Energy Composite Manufacturing
The product is optimized for wind turbine blade paste applications and provides stable performance for fiber reinforced composite structures.
Applications
725-EP3001A & 725-EP3003B epoxy resin is suitable for:
Wind Turbine Components
- Wind turbine blades
- Blade reinforcement structures
- Engine room covers
- Fairings
Composite Manufacturing
- Hand lay-up composite structures
- Glass fiber reinforced composites
- FRP components
Other Applications
- Sports equipment
- Lightweight composite products
- Industrial composite parts
Technical Properties
Component A: 725-EP3001A Epoxy Resin
| Property | Unit | Value |
|---|---|---|
| Appearance | - | Colorless transparent syrupy liquid |
| Viscosity (25℃) | cP | 2000-3000 |
| Density (25℃) | g/ml | 1.1-1.2 |
| EEW | g/eq | 165-180 |
| Storage Life | Month | 12 |
Component B: 725-EP3003B Hardener
| Property | Unit | Value |
|---|---|---|
| Appearance | - | Blue clear liquid |
| Viscosity (25℃) | cP | 100-350 |
| Density (25℃) | g/ml | 0.94-1.1 |
| Amine Value | mgKOH/g | 400-550 |
| Storage Life | Month | 12 |
Mixed Resin Properties
Mixing Ratio:
725-EP3001A : 725-EP3003B = 100 : 34 ±2
| Property | Unit | Value |
|---|---|---|
| Mixed Viscosity (25℃) | cP | 800-1500 |
| Density | g/ml | 1.1-1.2 |
| Pot Life (25℃) | min | ≥10 |
| Exothermic Peak Temperature | ℃ | ≤230 |
Cured Resin Performance
Curing Condition:
10h @70℃
| Property | Unit | Value |
|---|---|---|
| Density | g/cm³ | 1.1-1.2 |
| Tg (Teig) | ℃ | ≥65 |
| Tg (Tmg) | ℃ | ≥70 |
| Tensile Strength | MPa | ≥60 |
| Tensile Modulus | MPa | ≥2700 |
| Fracture Elongation | % | ≥2.5 |
| Flexural Strength | MPa | ≥100 |
| Flexural Modulus | MPa | ≥2700 |
| Volumetric Shrinkage | % | ≤5 |
| Water Absorption | % | ≤0.5 |
| HDT | ℃ | ≥65 |
Processing Guidelines
Mixing Ratio
Recommended:
725-EP3001A : 725-EP3003B = 100 : 34 ±2
Mixing Procedure
For optimal resin performance:
- ✅ Accurately measure both components.
- ✅ Mix thoroughly for at least 2 minutes.
- ✅ Ensure complete mixing at container walls and bottom.
- ✅ Maintain accurate mixing ratio during production.
Recommended Processing Conditions
Working temperature:
20℃-30℃
Humidity:
Below 70%
Recommended curing temperature:
50℃-80℃
The curing process can be adjusted according to:
- Component size
- Production requirements
- Temperature conditions
Storage and Packaging
Packaging
725-EP3001A Resin
- 220 kg sealed drums
725-EP3003B Hardener
- 200 kg sealed drums
Storage Conditions
- Temperature: 10℃-40℃
- Store in dry conditions
- Keep containers tightly sealed
- Avoid moisture exposure
The curing agent is hygroscopic and may absorb moisture and carbon dioxide from the atmosphere. Proper sealing after opening is required to maintain chemical properties and final composite performance.
FAQ
1. What is rapid curing hand lay-up epoxy resin?
Rapid curing hand lay-up epoxy resin is a composite resin system designed for manual composite production where shorter processing cycles and faster curing are required.
2. What applications use this epoxy resin?
It is mainly used for wind turbine blades, blade covers, fairings, and other fiber reinforced composite components.
3. What is the difference between this resin and long pot life hand lay-up epoxy resin?
This system provides a much shorter pot life and faster reaction speed, making it suitable for production processes requiring higher efficiency.
4. Is this resin suitable for glass fiber composites?
Yes. The resin provides good fiber wettability and is suitable for glass fiber reinforced composite manufacturing.
