Aliphatic Spray Polyurea Waterproofing Coating

Product Item : PS700F
Category： Spray Polyurea Coatings
PS700F is a fast-curing, spray-applied polyurea. It forms durable, flexible, and odorless coatings ideal for confined spaces and high-temperature environments (up to 80°C).
TDS INQUIRY EMAIL

1. Product description

PS700F is a 1:1 volume ratio, solvent-free, aliphatic pure polyurea designed for spray application, offering instant curing and rapid thick-film formation; it maintains performance and hardness at temperatures up to 80°C, provides excellent elongation to withstand substrate movement, and is odorless after curing for safe use in confined spaces.

2. Features

1, Suitable for dry or wet applications with strong UV exposure.

2, Highly elastic with exceptional waterproofing and sealing performance.

3, UV and color stable.

4,Offers high chemical and abrasion resistance.

3.Application scope

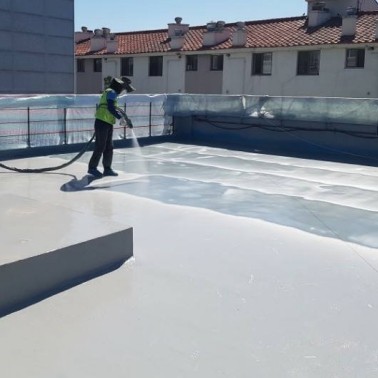

Designed for industrial and commercial applications exposed to continuous or intermittent UV radiation, this product provides integrated decorative and waterproof protection without requiring a topcoat. Typical uses include outdoor parking lots, stadium bleachers, roofs, water park pools, swimming pool liners, and playground floors.

Performance

Item	Part A	Part B
Appearance	Clear liquid	Adjustable color
Specific gravity	1.12	1.05
Solid content (%)	100	100
Mix ratio(by volume)	1	1
Gel time (second)@25℃	12
Tack-Free Time(second)	60
Theoretical coverage (dft)	1.07kg/㎡ film thickness:1mm

Physical properties

Item	Test standard	Result
Hardness (Shore D)	ASTM D-2240	42
Elongation at Break(%)	ASTM D-412	552
Tensile strength(Mpa)	ASTM D-412	16
Tear strength (kN/m)	ASTM D-624	70
Impermeability (0.3Mpa/30min)	HG/T 3831-2006	Impermeable
Wear resistance(750g/500r)/mg	HG/T 3831-2006	40
Adhesive strength(Mpa)concrete base	HG/T 3831-2006	3.5
cathodic disbonding resistance [1.5v,(65±5)℃，48h]	HG/T 3831-2006	≤15mm
Resistance to QUV Aging (2000 h)	ASTM G154	>90% property retention; no significant change in appearance.

Chemical resistance

Acid resistance 10%H₂SO₄ or 10%HCI,30d	No rust, no bubbles, no peel off
Alkali resistance 10% NaOH, 30d	No rust, no bubbles, no peel off
Salt resistance 30g/L,30d	No rust, no bubbles, no peel off
Salt spray resistance, 2000h	No rust, no bubbles, no peel off
Oil resistance 0# diesel, crude, 30d	No rust, no bubbles, no peel off
(For reference: the above data is acquired based on GB/T9274-1988 test standard. Pay attention to the influence of ventilation, splash and spillage. Independent immersion testing is recommended if requires other specific data)

Application guide

Recommend spray machine	Special polyurea spraying equipment
Spray gun	Fusion-air purge or mechanical purge
Static pressure	2300-2500psi
Dynamic pressure	2000-2200psi
Heating temperature for product spraying	65℃-70°C
Pipeline heating temperature	55℃-65℃
Recommend film thickness	1000-3000μm
Recoating interval	≤6h

Application environment

Environment temperature	0℃-45℃
Relative humidity	≤90%
Dew point	≥3℃

4.Surface preparation

Concrete surface: achieve a strong, dense, flat, clean, and dry state. There should be no phenomena such as sanding, shelling, cracks, honeycomb and pockmarks. Usually concrete should be prepared by putty.

Wood surface: clean, dry, without burrs, fragments, and loose debris.

The surface preparation of other substrates please consult with HUISINS technical engineers.

5.Package

Two-component, A component 220KG / 200L barrel, B component 210KG / 200L barrel.

PREVIOUS：Polyaspartic Joint Sealant NEXT：Pipeline Special Anti-Corrosion Polyurea Coating
