Solvent Free Polyurethane Gel-coatings

Product Item : 725-S06-15
Category： Industrial Coatings
A solvent-free polyurethane coating;
Excellent flexibility, abrasion-resistance, weathering stable and adhesion;
Protection of wind turbine blade and FRP structure.
TDS INQUIRY EMAIL

Produce Description

-A solvent-free polyurethane coating

-Color: RAL7038

-Excellent flexibility, abrasion-resistance, weathering stable and adhesion

Intended Uses

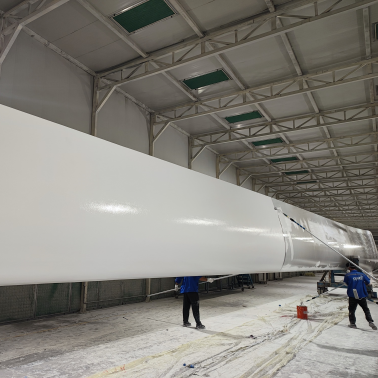

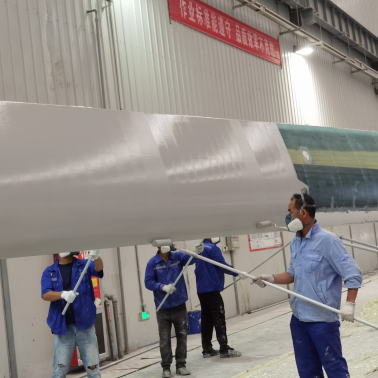

-Protection of wind turbine blade and FRP structure.

Product Information

Volume Solids	≥95%
Finish/Sheen	Gloss
Film Thickness and Theoretical Coverage	Min				Typical	Max
	Dryfilm Thickness(μm)		75		125	200
	Wetfilm Thickness(μm)		79	131		210
	The oretical Coverage(m2/L)		12.7	7.6		4.8
Mix ratio	2.05:1~2.15:1（ volume） 2.38:1~2.48:1（ mass）
Thinner	Not recommended. Use only in exceptional circumstances (mass 5%)
Cleaner	725-NX-701
Induction Period	Not necessary
Flash Point	Part A	Greater than 31℃
	Part B	Greater than 100℃
	Mixed paint	Greater than 31℃

Method of Application

Airless Spray	Tip size range 0.38-0.53mm
Airless Spray	Output pressure ≥17MPa
Air Spray	Tip size range 2.0-3.0mm
Air Spray	Output pressure ≥0.4MPa
Brush/Roller	Need to coat several times to get film thickness.

Drying Information
			5℃		15℃		25℃		35℃
Touch Dry			3h		1.5h		1h		30min
Hard Dry			5h		4h		3h		3h
Pot Life			1h		1h		40min		30min
Overcoating Data
Substrate Temperature
Overcoated by	5℃		15℃			25℃		35℃
	Min	Max	Min	Max		Min	Max	Min		Max
725-S06-15	3h	7d	1.5h	7d		1h	7d	1h		7d
725-WS52-16	3h	7d	1.5h	7d		1h	7d	1h		7d

Pack Size

Part A	9kg/6.8L in 20 L container
Part B	3.7kg/3.2L in 4L container

Storage

Store in well ventilated and dry conditions when temperature is -10℃~40℃and RH is less than 90%. Keep away from hot and fire.Shelf Life:12 months minimum at 25 ℃Subject to re-inspection thereafter.

Systems and Compatibility

Consult your Representative for the systems best suited for the surfaces to be protected.

Surface Preparation

Using pneumatic grinding tools with P80~P120 sandpaper to brush blade surface or dried putty. Ensure that the surface is clean before paint coating without dust, grease, water droplets and other pollutants.

Curing condition

The suitable temperature for applying 725-S06-15 is 5～40℃.

Apply in good weather. Temperature of the surface to be coated must be least 3℃ above the dew point when the humidity is lower than 85%.

It must be ventilate above 8h at pool ventilation area.

The paint group A and B shall be mixed evenly and no coarse particles shall be visually detected. Filter with 60-mesh filter when coarse particles are visually detected.

Mix according to the ratio of mass ratio A:B=2.38:1~2.48:1 or volume ratio A:B=2.05:1~2.15:1.

Add group B into group A and mix evenly before coating application.
