3.Performance:
Item
Part A
Part B
Appearance
Pale yellow liquid
Adjustable color
Specific gravity
1.13
1.04
Viscosity(cps)@25℃
650
650
Solid content (%)
100
100
Mixing ratio(volume ratio)
1
1
Gel time(second)@25℃
3-5
Tack-Free Time(second)
10-20
Theoretical Coverage (dft)
1.03kg/㎡ film thickness:1mm
Physical properties
Items |
Test standard |
Result |
Hardness (Shore D) |
ASTM D-2240 |
47 |
Elongation at Break(%) |
ASTM D-412 |
150 |
Tensile strength(Mpa) |
ASTM D-412 |
20 |
Tear strength (kN/m) |
ASTM D-624 |
65 |
Impermeability(0.3Mpa/30min) |
HG/T 3831-2006 |
impermeable |
Wear resistance (750g/500r)/mg |
HG/T 3831-2006 |
4.5 |
Adhesive strength(Mpa)concrete base |
HG/T 3831-2006 |
3.1 |
Adhesive strength(Mpa) steel base |
HG/T 3831-2006 |
11 |
Density(g/cm³) |
GB/T 6750-2007 |
1.02 |
Cathodic disbondment [1.5v,(65±5)℃,48h] |
HG/T 3831-2006 |
≤15mm |
Acid resistance 10%H₂SO₄ or 10%HCI,30d |
No rust, no bubbles, no peel off |
|
Alkali resistance 10% NaOH, 30d |
No rust, no bubbles, no peel off |
|
Salt resistance 30g/L,30d |
No rust, no bubbles, no peel off |
|
Salt spray resistance, 2000h |
No rust, no bubbles, no peel off |
|
Oil resistance 0# diesel, crude,30d |
No rust, no bubbles, no peel off |
|
(For reference: the above data is acquired based on GB / T9274-1988 test standard. pay attention to the influence of ventilation, splash and spillage. Independent immersion testing is recommended if requires detail data) |
Curing time
Substrate temperature |
Dry |
Walking intensity |
complete solidify |
+10℃ |
18s |
45min |
7d |
+20℃ |
13s |
15min |
6d |
+30℃ |
10s |
5min |
5d |
Note: the curing time varies with the environment condition especially the temperature and relative humidity.
4.Applications:

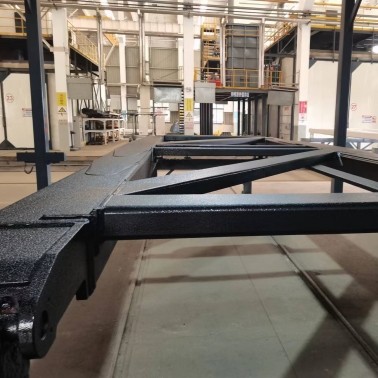

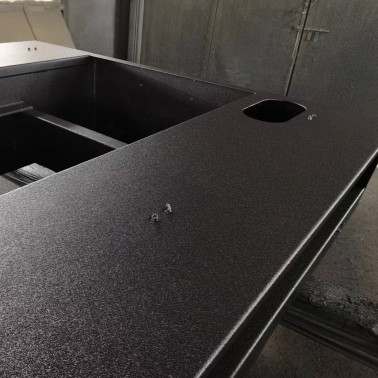

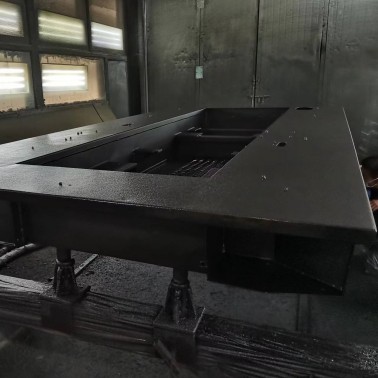

Pickup trucks, light trucks, containers, garbage trucks, etc.
5.Package:
Two-component, A component 220KG / 200L barrel, B component 210KG / 200L barrel.
6.Storage/Shelf Life:
Ideal storage condition is 5-35 ℃ in cool and dry place, avoid direct sunlight. / Nine months
