Heavy-Duty Anti-Corrosion Coating System for Hangzhou Bay Cross-Sea Bridge Concrete Piers
Professional C5-M marine-grade heavy-duty coating system for Hangzhou Bay cross-sea bridge piers. 30-year maintenance-free protection against severe marine chloride & sulfate corrosion.
Project Overview
Project Site: Hangzhou Bay, China
Execution Time: 2024
Project Category: Marine Grade Heavy-Duty Anti-Corrosion & Bridge Concrete Structure Protection Engineering

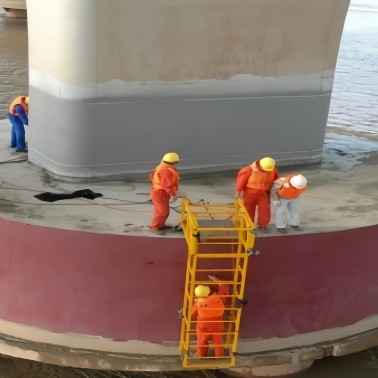

This high-standard C5-M marine-grade heavy-duty anti-corrosion project targets the concrete pier structures of the Hangzhou Bay Cross-Sea Bridge, one of China’s core coastal transportation infrastructures. The bridge piers operate in an extremely harsh marine corrosive environment, featuring ultra-high salt spray concentration and frequent tidal wet-dry cycles. Before renovation, professional pre-application inspections detected severe structural corrosion defects, including 20mm deep chloride penetration, widespread concrete spalling in splash zones, and steel reinforcement corrosion rates 300% higher than the design threshold. To resolve these critical structural safety risks and achieve long-term durable protection, we deployed a customized marine heavy-duty coating system in 2024, realizing reliable 30-year maintenance-free anti-corrosion protection for bridge concrete piers.
On-Site Corrosion Challenges & Construction Difficulties
The Hangzhou Bay marine environment brings multi-dimensional complex corrosion and strict construction constraints, posing huge challenges to anti-corrosion engineering:
1. Severe Composite Corrosion Environment: The local seawater maintains a pH value of 8.1 to 8.4 with excessive sulfate content, exceeding the Class III environmental corrosion limits specified in the national standard GB/T 50476-2019. Coupled with continuous salt spray erosion (salt spray concentration >1,500mg/m²·d) and daily tidal wet-dry cycles of no less than 2 times, concrete structures suffer from superposed chemical and physical corrosion.

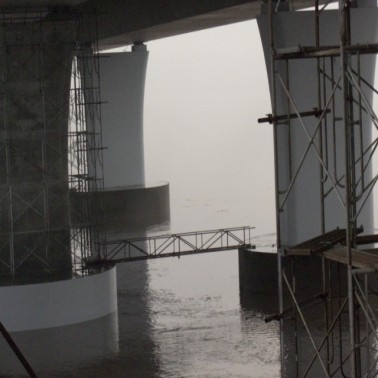

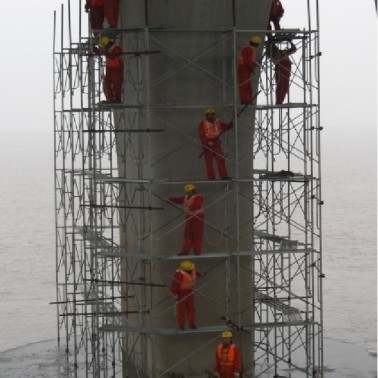

2. Strict On-Site Construction Restrictions: Affected by tidal changes, the effective daily construction window is only 3 to 4 hours. Meanwhile, the substrate moisture content must be strictly controlled below 6%, requiring extremely high construction efficiency and precise process control.
3. Ultra-High Long-Term Durability Standards: The coating system must meet rigorous industrial indicators: chloride diffusion coefficient lower than 1×10⁻¹²m²/s, 300-cycle freeze-thaw resistance stability, and 5kJ/m² impact energy absorption capacity, ensuring structural safety under long-term marine extreme conditions.
Professional Marine Coating System Design & Technical Advantages
A targeted three-layer C5-M marine heavy-duty coating system was formulated to adapt to extreme marine corrosion and strict bridge protection standards, achieving layered barrier and comprehensive protection:
1. Penetration Sealer Layer (Solvent-free Epoxy Primer)
The solvent-free epoxy primer achieves a penetration depth of more than 8mm on the concrete substrate. It penetrates and fills concrete internal pores to form a compact curing structure, effectively blocking chloride ion migration and preventing internal corrosion of steel reinforcement, laying a solid foundation for overall anti-corrosion performance.
2. Anti-Corrosion Structural Layer (Glass Flake Epoxy Coating)
With a dry film thickness (DFT) of 500μm, the high-performance glass flake epoxy coating forms a dense physical barrier. It delivers excellent mechanical strength and chemical resistance, resisting long-term erosion of seawater, sulfate and salt spray, and avoiding coating damage and structural peeling caused by tidal impact and chemical corrosion.
3. Weathering Protection Topcoat (Aliphatic Polyurethane Topcoat)
The aliphatic topcoat passes 3,000-hour UV aging tests in accordance with ASTM G154 international standard. It provides superior anti-aging, anti-fouling and anti-biofouling performance, effectively resisting strong coastal ultraviolet radiation and marine biological adhesion, maintaining long-term coating integrity and stable appearance of bridge piers.
Project Benefits & Industry Value
After the completion of the systematic anti-corrosion renovation, the three-layer C5-M marine coating system completely solves the problems of chloride penetration, concrete spalling and steel bar corrosion of Hangzhou Bay Bridge piers. All technical indicators meet and exceed national and international marine engineering protection standards. The solution successfully achieves 30-year long-term maintenance-free protection, greatly reduces later manual maintenance costs and traffic operation risks, and improves the overall durability and safety stability of cross-sea bridge concrete structures. This standardized, high-durability marine heavy-duty coating solution provides a reliable reference for anti-corrosion renovation and new construction of large-scale coastal bridge and marine hydraulic infrastructure projects.
