Special Vehicle Explosion Protection High Strength Coating

Special Vehicle Explosion Protection High Strength Coating

Category： Spray Polyurea Coatings

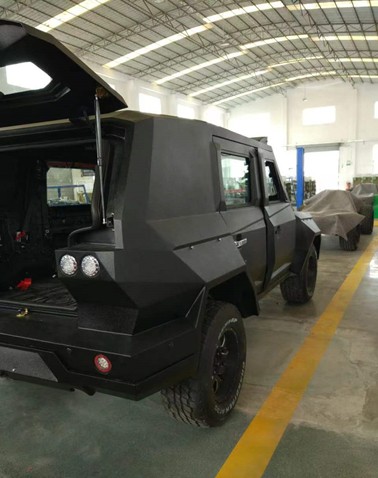

PS600H is a high-performance protective coating engineered with high crosslinking density, moderate elasticity, and exceptional wear resistance. Designed to withstand vehicle collisions and explosive impacts, it delivers outstanding toughness, abrasion resistance, and impact protection. Widely used in armored vehicles, police cars, security escort vehicles, and SUVs, PS600H significantly enhances structural integrity and ensures occupant safety.
TDS INQUIRY EMAIL

1.Description

PS600H is a material characterized by its high crosslinking density and moderate elasticity, along with exceptional wear resistance. During vehicle collisions, the body is susceptible to damage, which can pose serious risks to occupants. Therefore, selecting a reliable explosion-resistant material for vehicle protection is crucial. To address this need, we have developed a high-strength, explosion-protective coating that offers outstanding toughness, abrasion resistance, and impact resistance. This coating has been widely applied in armored vehicles, police cars, special-purpose escort vehicles, and sports utility vehicles.

2. Characteristics

PS600H offers high reactivity and fast curing properties. It can be sprayed onto curved, sloped, or vertical surfaces without sagging.The resulting surface exhibits a granular texture that is visually appealing and pleasant to the touch. The coating forms a dense, seamless film with strong adhesion to the substrate, significantly enhancing bond strength. It provides excellent explosion protection, impact resistance, and collision resistance, helping to safeguard the vehicle body and reduce damage from external forces. When sprayed in combination with a polyaspartic anti-aging topcoat, it effectively prevents color fading, ensures an attractive appearance, and enhances overall safety.

3.Performance

Volume solid content	100%
Penetration resistance	2.6Mpa
Adhesive strength (steel base)	12.3Mpa
Elongation at Break（%）	≥450
Tensile strength	21MPa
Tear strength	≥82kN/m
Water impermeability	0.4MPa,60min
Density	1.01g/cm³
Wear resistance （750g,500r）	4.3mg
Recommended dry film thickness	2000-3000μm
Theoretical coverage	2.04kg/sqm (calculated by the above solids percentage and dry film thickness of 2000 microns)
Practical coverage	Allow appropriate loss rate
Water resistance（30d）	no rust no bubbles no peel
Acid resistance (10%H₂SO₄ or 10%HCI, 30d)	no rust no bubbles no peel
Alkali resistance 10%NaOH, 30d	no rust no bubbles no peel
Salt resistance 60g/L, 30d	no rust no bubbles no peel
Salt spray resistance （2000h）	no rust no bubbles no peel
Oil resistance 0# diesel crude oil 30d	no rust no bubbles no peel
Tack-Free Time（second）	15-35s
Gel time (second）@25℃	4-6s

4.Construction method

1) Spray equipment: spray polyurea materials must be constructed using a dedicated (1:1) two-component spray equipment. Such as Graco's H-XP3 and so on.
2) Construction environment requirements: In order to achieve the best coating effect, the site requires ventilation, he ambient temperature should not be lower than 10 °C, the substrate temperature is higher than the dew point of 5 °C, and the air humidity is less than 80%.
5.Package
Two-component, A component 220KG / 200L barrel, B component 210KG / 200L barrel.
6. Color
Spray polyurea material can provide other colors according to user requirements
7. Safety
Spraying polyurea materials should be equipped with basic labor protection measures during it was be used.
It is recommended that operators be equipped with protective clothing, goggles, plastic gloves, masks and other protective equipment.
8.Storage/Shelf Life
Ideal storage condition is 5-35 ℃ in cool and dry place, avoid direct sunlight. / one year
