Hand-applied thick film aliphatic polyurea waterproof coating

Product Item : ST800G
Category： Hand-Applied Polyurea Coatings
ST800G is a high-performance, single-component aliphatic polyurea coating designed for superior anticorrosion and waterproofing protection. Formulated with high-strength resins, aliphatic isocyanates, and special additives, it offers high viscosity for easy trowel application. This product delivers exceptional high elasticity, tensile strength, abrasion resistance, and impact resistance. Its outstanding weather resistance ensures it will not chalk or discolor after long-term outdoor exposure, pr
TDS INQUIRY EMAIL

1.Description

ST800G is a single component aliphatic polyurea anticorrosion waterproof protective coating. Due to the use of high-strength resin, aliphatic isocyanate, and some special additives for pre-polymerization, the resulting coating has high viscosity and can be applied with a scraper. This product not only has excellent high elasticity, high strength, wear resistance and impact resistance, but also has excellent anti-corrosion and weather resistance property. It does not pulverize or discolor after long-term outdoor use, and has good decoration effects.

2.Features

* High solid content, low VOC emission

* The application method is simple and can be applied by brush, roller, air spray or high-pressure airless spray.

* Good physical properties such as wear resistance and impact resistance.

* Excellent waterproof performance.

* Excellent resistance to chemical medium corrosion, capable of withstanding certain concentrations of acids, alkalis, salts, oils, organic solvents, etc

* Excellent anti-aging performance, non-powdering and non-discoloration for long term outdoor use

* Excellent adhesion, can quickly and firmly bond to the substrate surfaces such as steel, concrete, wood, glass fiber, etc

* The application temperature range is wide, ranging from -50℃ to 120℃ condition.

* It is single component material, easy to apply, without the need for mixing, reducing labor costs

Application Scope

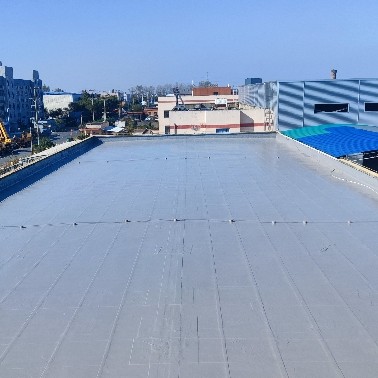

Anticorrosion and waterproof protection for industries such as petroleum, chemical, transportation, construction, power, and containers. Such as for bridge maintenance, building roof waterproofing, water conservancy dams, hydropower station building waterproofing, etc.

3. Products information

Item	Results
Appearance	Color adjustable
Specific gravity	1.1-1.2
Viscosity (cps )@20℃	10000-30000
Solid content (%)	80 (Slightly different due to different colors)
Tack-Free Time (hrs)	1-3
Pot life (hrs)	1
theoretical coverage	0.16kg/m²( thickness 100um)

4.Physical properties

Item	Test standard	Result
Hardness (Shore A)	ASTM D-2240	92
Elongation at Break（%）	ASTM D-412	300
Tensile strength（Mpa）	ASTM D-412	24
Tear strength (KN/m)	ASTM D-624	65
Abrasion resistance （750G/500r）/mg	HG/T 3831-2006	8
Adhesive strength（Mpa）concrete base	HG/T 3831-2006	3.5
Adhesive strength（Mpa) steel base	HG/T 3831-2006	10
Impact Resistance (kg.m)	GB/T23446-2009	1.0
Density（g/cm³)	GB/T 6750-2007	1.2

5.Chemical resistance

Acid resistance 10% H₂SO₄ or 10%HCI,30d	No rust, no bubbles, no peel off
Alkali resistance 30% NaOH, 30d	No rust, no bubbles, no peel off
Salt resistance 30g/L,60d	No rust, no bubbles, no peel off
Salt spray resistance, 2000h	No rust, no bubbles, no peel off
Oil resistance 0# diesel, crude,30d 0# diesel, crude oil, 30d	No rust, no bubbles, no peel off No rust, no bubbles, no peel off

(For reference: pay attention to the influence of ventilation, splash and spillage. Independent immersion testing is recommended if requiring detail data.)

6.Application instructions

Environment temperature

-5℃-35℃

Relative humidity

35-85%

Dew point

when apply on metal surface, the temperature must be 3℃ higher than dew point.

7.Application guide

Recommended application method	scraping
Recommended dft	500-2000um (or based on the design requirements)
Recoating interval	4-24h, If the re-coating time exceeds 24 hours or there is dust on the surface, it is recommended to use sandpaper to polish and clean before application.
