Polyaspartic High solids Elastic Waterproof coating

Product introduction：

HA8500 is a two-component, high-performance polyaspartic ester intermediate coat, specifically designed for demanding industrial environments and high-performance protective coating systems. Formulated from polyaspartic ester resins, pigments, fillers, additives, solvents, and MDI curing agents, it plays a pivotal intercoat role in multi-layer systems, providing exceptional physical protection and a stable foundation for the entire coating.

Characteristic：

■ Thick film construction,more than 500μm at a time

■ Great adhesion with epoxy primer and polyurea topcoat

■ Excellent elongation and Tensile strengt

■ Simple construction and quick drying

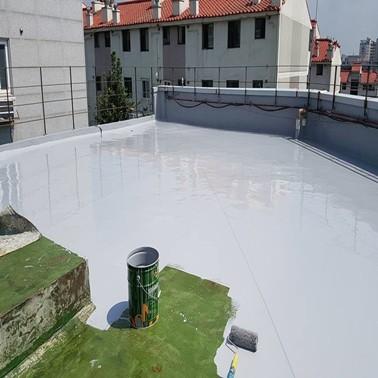

Application： For the waterproofing and anti-corrosion to concrete substrate(basement, bridge, roof, warehouse, water park),foam, plastic and other substrates; for waterproofing and anti-corrosion of buried steel structure outer layer.

Physical Parameters：

Color：Blue,Gray

Weight Solid：≥98%

Flash point：90±2℃

Viscosity：1000±200CPS(25℃）

Proportion：1.1±0.05g/cm³

Luster：Half-light or bright

Coating thickness：Dry Film：500－600   Wet film：560－680μm

Theoretical coating rate：Theoretical value：1.8㎡/Kg/500μm

Actual value：varies according to various factors such as surface treatment, external environment, construction method, etc.

Main Technical indicators of Coating Film：

Item	Test standard	Result
Elongation	GB/T 16777-2008	≥300%
Tensile Strength	GB/T 16777-2008	≥10MPa
Tear strength(N/mm)	GB/T 529-2008	≥60
Adhesion (concrete)	GB/T 5210-2006	≥4MPa
Abrasive resistance(1000g/500r)	GB/T 1768-2006	≤40mg

Construction parameters：
Ratio：
Brush：Main paint: curing agent: thinner＝1:1:0.05
Coating available time：

Temperature(℃）	5	10	20	25
Mixing(hrs)	80~90	60~80	40~60	30~40

Construction conditions: -15 ℃ -30 ℃, humidity: ≤ 85%

Substrate temperature: must be greater than the air dew point temperature above 3 ℃

Construction method：

Airless spraying, brushing （Recommended Use）
Airless spray (two-component)
Nozzle Size	0.021－0.023
Outlet pressure	100－120kg.cm3
Dilution ratio	5%

Cleaning agent / thinner：Polyurea standard thinner

Note: If you use airless spray or roller coating, please consult our engineers before use.

Drying time and coating interval：

Temperature(℃）	－5	5	10	20	30
Touch dry(hrs)	6	3	2.5	2	1.5
Hard dry (hrs)	24	12	10	8	6
Painting interval(hrs)	48	24	20	16	12

The above data are for guidance only. Actual drying time / time interval before coating can be long or short, depending on film thickness, ventilation, humidity, lower paint, preloading requirements and mechanical strength.

Painting matching：

Applicable under coat: epoxy primer, polyurea coating, or refer to our recommended package

Applicable top coating: polyaspartic polyurea topcoat

Surface treatment:

1,Rinse with salt water and other water-soluble dirt

2,Remove grease with a suitable detergent and degreaser

3,Make sure the surface is clean and dry before construction

4,Note the distance between the coating and the primer

store:

Storage time: Paint:1 year   Curing agent: 9 months

Storage temperature: 0 ℃ -30 ℃

Packing:Paint: Part A Curing agent : 10KG/Pail ;Part B Main Agent : 10KG/Pail
