Wind Turbine Blade Coating
A two pack waterborne acrylic polyurethane paint.Excellent adhesion, flexibility and abrasion resistance, with the function of anti-icing. Excellent UV aging resistance.
Product Name:Waterborne acrylic polyurethane finish
Product Description
A two pack waterborne acrylic polyurethane paint.
Color: RAL7035.
Excellent adhesion, flexibility and abrasion resistance, with the function of anti-icing.
Excellent UV aging resistance.
Intended Uses

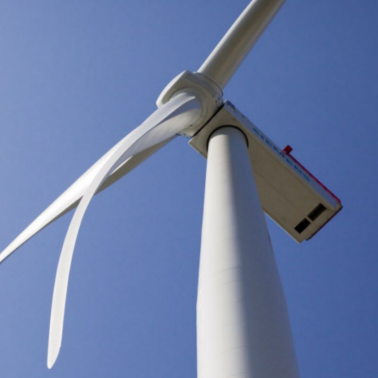

For wind turbine blade.
Product Information
|
Volume Solids |
52%±2% |
|||
|
Finish/Sheen |
Matte |
|||
|
Film Thickness and Theoretical Coverage |
Min |
Typical |
Max |
|
|
Dryfilm Thickness(μm)
|
70 80 90 |
|||
|
Wetfilm Thickness(μm)
|
156 178 200 |
|||
|
Theoretical Coverage(m²/L) |
6.43 5.6 2 5 |
|||
|
Mix ratio |
4.2:1~4.4:1（ Volume） 5.7:1~5.9:1（ mass） |
|||
|
Thinner |
Water (mass ≤15%) |
|||
|
Cleaner |
Water |
|||
|
Induction Period |
Not applicable |
|||
|
Flash Point |
Not applicable |
|||
|
Method of Application |
||||
|
Airless Spray |
Tip size range |
0.38-0.53mm |
||
|
Output pressure |
≥15MPa |
|||
|
Air Spray |
Tip size range |
2.0-3.0mm |
||
|
Output pressure |
≥0.4MPa |
|||
|
Brush/Roller |
Need to coat several times to get film thickness. |
|||
|
Drying Information |
|||||||
|
|
15℃ |
25℃ |
35℃ |
||||
|
Touch Dry |
40min |
20min |
15min |
||||
|
Hard Dry |
4h |
3h |
2h |
||||
|
Pot Life |
2h |
2h |
1.5h |
||||
|
Overcoating Data |
|||||||
|
Substrate Temperature |
|||||||
|
Overcoated by |
15℃ |
25℃ |
35℃ |
||||
|
|
Min |
Max |
Min |
Max |
Min |
Max |
|
|
725-WS52-16 |
1h |
24h |
1h |
24h |
1h |
24h |
|
Pack Size
|
Part A |
15.4kg/11.5L in 20 L container |
|
Part B |
2.6kg/2.6L in 4L container |
Storage
Store in well ventilated and dry conditions when temperature is 0℃~35℃ and RH is less than 90%.Keep away from hot and fire. Shelf Life: 12months minimum at 25℃Subject to re-inspection thereafter.
Systems and Compatibility
Consult your Representative for the systems best suited for the surfaces to be protected.
Surface Preparation
725-WS52-16 should be applied over 725-S06-15. The primer surface should be clean, dry and free from contamination.725-WS52-16 must be applied within the coating interval specified (consult the relevant product data sheet). Areas of breakdown, damage etc. should be prepared to the specified standard and 725-S06-15 should be used before the application of 725-WS52-16.725-WS52-16 may be applied directly over aged 725-WS52-16 following thorough fresh water washing and degreasing provided the coating to be overcoated is in an intact and tightly adherent condition. Loose or flaking coatings should be removed back to a firm edge and 725-S06-15 should be used to repair the area before application of the full coat.
Curing condition
The suitable temperature for applying 725-WS52-16 is 10～35℃.
Apply in good weather. Temperature of the surface to be coated must be least 3℃ above the dew point when the humidity is lower than 85%.
It must be ventilated above 8h at pool ventilation area.
The paint group A and B shall be mixed evenly and no coarse particles shall be visually detected. Filter with 60-mesh filter when coarse particles are visually detected.
Mix according to the ratio of mass ratio A:B=5.7:1~5.9:1 or volume ratio A:B=4.2:1~4.4:1. Add group B into group A and mix evenly before coating application.
